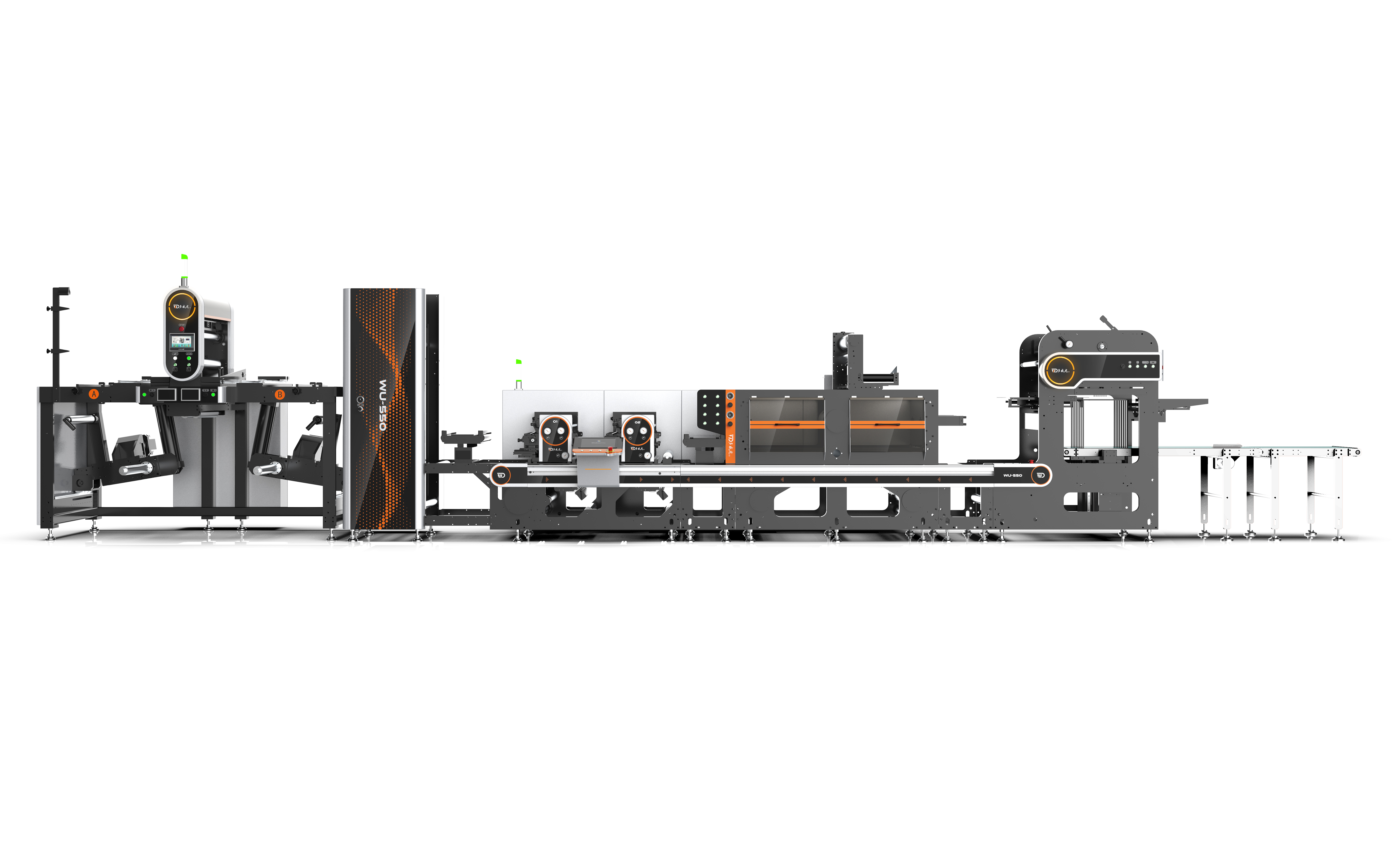

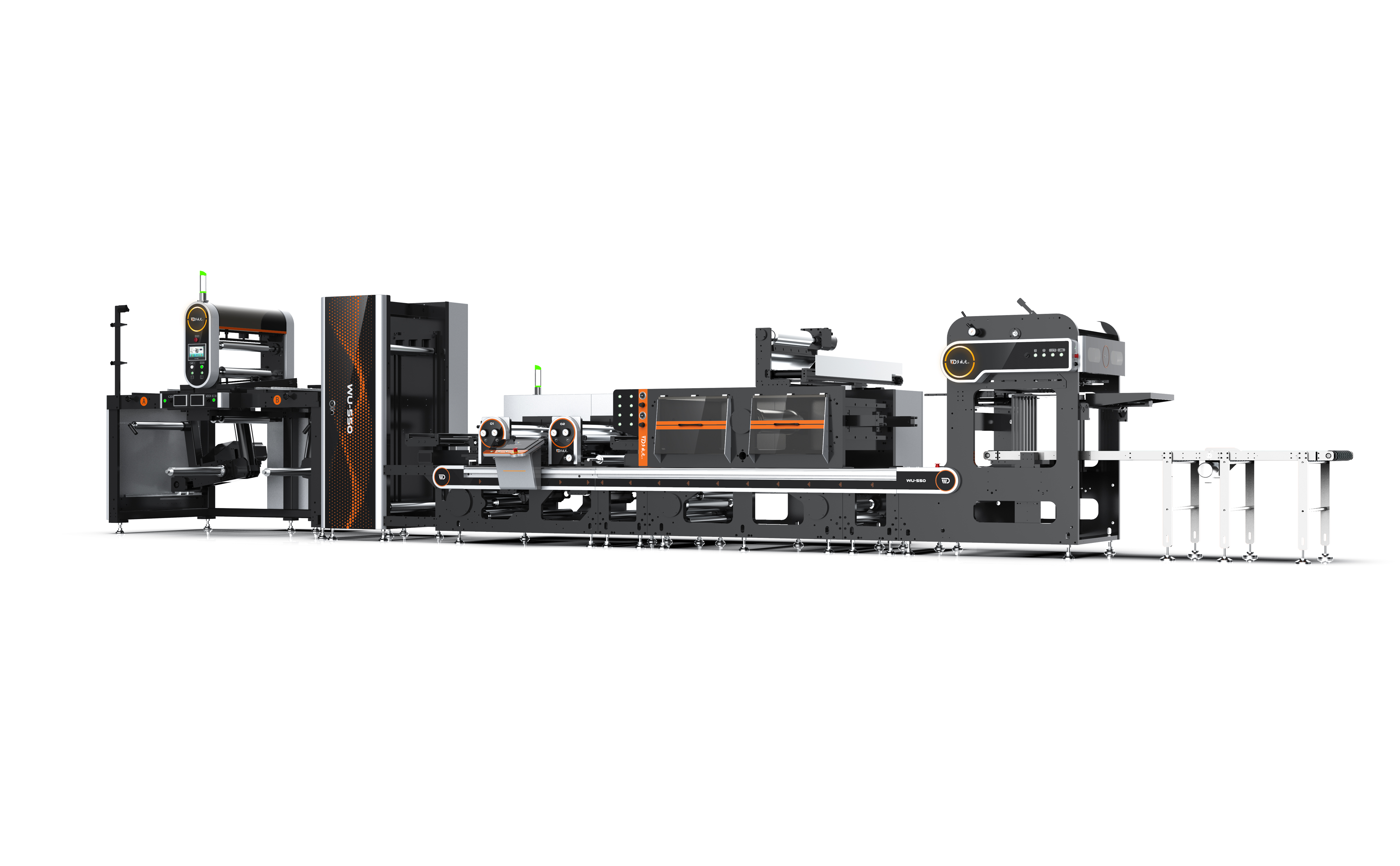

Dowell LF model is specifically designed for the production of logistics labels, which can print labels on both the front and back sides. It is equipped with high-efficiency die-cutting units to meet the high-quality and high-speed requirements of logistics labels. The machine can be equipped with 1-meter or 1.5-meter roll diameter non-stop unwinder to meet the needs of customers with different material specifications. The matrix removal unit installed after the die-cutting unit to remove the waste without stopping the machine. The collection of finished products can be equipped with non-stop rewinder, automatic cutting and folding unit, conveyor & stacker, and automatic turret rewinder, fully meeting the collection needs of logistics labels. The entire equipment can achieve continuous production without stopping, ensuring the efficiency and continuity of logistics label production.
Specification
Type | LF-550 |
---|---|
Max. machine speed | 200 m/min |
Max. print width | 550 mm |
Max. web width | 560 mm |
The Repeat Length of Printing | 222.3-619.1 mm |
The Thickness of Material | 35-350 gsm |
The Repeat Length of Folding | 130-355.6 mm |
Unwind diameter (Standard) | 1000 mm |
Unwind diameter (Large diameter) | 1500 mm |
Rewind diameter | 1000 mm |
